WP710A10SRC/E Kingbright LED RED CLEAR T-1 T/H

label:
2025/01/16 184

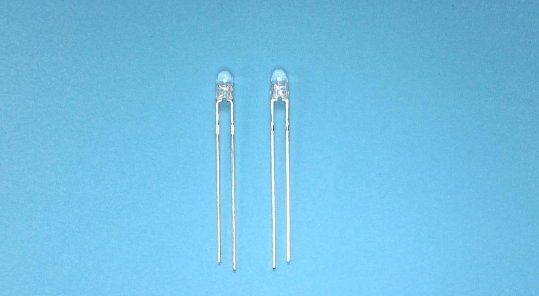

WP710A10SRC/E Kingbright LED RED CLEAR T-1 T/H


• Low power consumption
• Popular T-1 diameter package.
• General purpose leads
• Reliable and rugged
• Long life - solid state reliability


CATALOG
WP710A10SRC/E COUNTRY OF ORIGIN
WP710A10SRC/E PARAMETRIC INFO
WP710A10SRC/E PACKAGE INFO
WP710A10SRC/E MANUFACTURING INFO
WP710A10SRC/E PACKAGING INFO


COUNTRY OF ORIGIN
China


PARAMETRIC INFO
Type Uni-Color
Color Red
Category Standard LED
Mounting Orientation Top Mount
Lens Shape Type Circular
LED Material GaAlAs
Lead Standoff No
High Brightness Yes
Peak Wavelength (nm) 660
Dominant Wavelength (nm) 640
Maximum Reverse Current (uA) 10
Supplier Color SB. Red
Intensity 900mcd
Number of LEDs 1
Viewing Angle (°) 34
Lens Appearance Colorless Non Diffused
High Power No
Maximum Forward Voltage (V) 2.5
Maximum Forward Current (mA) 30
Reverse Voltage (V) 5
Maximum Power Dissipation (mW) 75
Lens Dimensions (mm) 2.9x2.9x3.6
Minimum Operating Temperature (°C) -40
Maximum Operating Temperature (°C) 85
Peak Wavelength Range (nm) 600 to 700
Maximum Forward Voltage Range (V) 1.8 to 3.3
Minimum Storage Temperature (°C) -40
Maximum Storage Temperature (°C) 85


PACKAGE INFO
Supplier Package T-1
Basic Package Type Through Hole
Pin Count 2
Lead Shape Through Hole
PCB 2
Tab N/R
Pin Pitch (mm) 2.54
Package Length (mm) N/R
Package Width (mm) N/R
Package Height (mm) 4.6
Package Diameter (mm) 3.2
Mounting Through Hole
Package Description 3 mm Package
Package Family Name N/A
Package Outline Link to Datasheet


MANUFACTURING INFO
MSL N/R
Maximum Reflow Temperature (°C) N/R
Reflow Solder Time (Sec) N/R
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) 260
Wave Solder Time (Sec) 5 to 8
Wave Temp. Source Link to Datasheet
Lead Finish(Plating) N/A
Under Plating Material N/A
Terminal Base Material N/A


PACKAGING INFO
Packaging Bag
Quantity Of Packaging 1000
