| • Molded high temperature encapsulation |
| • Improved thermal management incorporated
into design |
| • All welded construction of the Power Metal
Strip® resistors are ideal for all types of current
sensing, voltage division and pulse applications |
| • Proprietary processing technique produces
extremely low resistance values (down to
0.001 Ω) |
| • Sulfur resistance by construction that is
unaffected by high sulfur environments |
| • Solid metal nickel-chrome or manganesecopper alloy resistive element with low TCR
(< 20 ppm/°C) |
| • Very low inductance 0.5 nH to 5 nH |
| • Low thermal EMF (< 3 μV/°C) |
| • Integral heat sink not utilized for resistance values less
than 0.0075 Ω |
| • AEC-Q200 qualified (1) |
| • Material categorization: for definitions of compliance
please see |
|
| CATALOG |
| WSR5R0100FEA COUNTRY OF ORIGIN |
| WSR5R0100FEA PARAMETRIC INFO |
| WSR5R0100FEA PACKAGE INFO |
| WSR5R0100FEA MANUFACTURING INFO |
| WSR5R0100FEA PACKAGING INFO |
| WSR5R0100FEA ECAD MODELS |
|
| COUNTRY OF ORIGIN |
| Israel |
| United States of America |
|
| PARAMETRIC INFO |
| Resistance Value (Ohm) |
10m |
| Temperature Coefficient (ppm/°C) |
±75 |
| Power Rating (W) |
5 |
| Tolerance |
1% |
| Negative Resistance Tolerance (%) |
-1 |
| Positive Resistance Tolerance (%) |
1 |
| Technology |
Metal Strip |
| Package Shape |
Rectangular |
| Case Style |
Molded |
| Maximum Terminal Width (mm) |
7.11 |
| Operating Temperature (°C) |
-65 to 275 |
| Minimum Operating Temperature (°C) |
-65 |
| Maximum Operating Temperature (°C) |
275 |
| Temperature Range @ Derated Power (°C) |
70 to 275 |
| Minimum Storage Temperature (°C) |
-65 |
| Current Sensing |
Yes |
| Fail Safe Fusible Resistor |
No |
| Anti-Surge |
No |
| Anti-Sulfurated |
Yes |
| Special Features |
High Power|Low Resistance |
| Tradename |
Power Metal Strip® |
|
|
| PACKAGE INFO |
| Case Size |
4527 |
| Package/Case |
4527 |
| Mounting |
Surface Mount |
| Package Type |
SMD |
| Termination Style |
J-Lead |
| Product Length (mm) |
11.56 |
| Product Depth (mm) |
6.98 |
| Product Height (mm) |
2.41 |
| Product Diameter (mm) |
N/R |
| Length Tolerance (mm) |
±0.81 |
| Depth Tolerance (mm) |
±0.13 |
| Height Tolerance (mm) |
±0.13 |
| Diameter Tolerance (mm) |
N/R |
| Maximum Product Length (mm) |
12.37 |
| Maximum Product Depth (mm) |
7.11 |
| Maximum Product Height (mm) |
2.54 |
| Terminal Pitch (mm) |
N/R |
| Number of Terminals |
2 |
| Product Weight (g) |
0.476 |
|
|
| MANUFACTURING INFO |
| MSL |
1 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
10 |
| Number of Reflow Cycle |
3 |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
260 |
| Wave Solder Time (Sec) |
5 |
| Wave Temp. Source |
Link to Datasheet |
| Lead Finish(Plating) |
SnAg |
| Under Plating Material |
N/R |
| Terminal Base Material |
Cu |
| Number of Wave Cycles |
N/A |
|
|

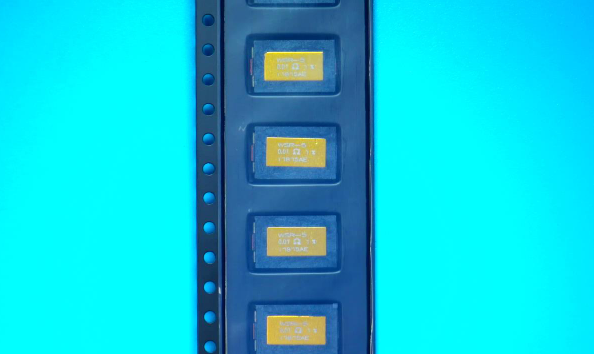

| PACKAGING INFO |
| Packaging Suffix |
EA |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1500 |
| Reel Diameter (in) |
13 |
| Reel Width (mm) |
24.4 |
| Tape Pitch (mm) |
12 |
| Tape Width (mm) |
24 |
| Feed Hole Pitch (mm) |
4 |
| Hole Center to Component Center (mm) |
2 |
| Packaging Document |
Link to Datasheet |
| Tape Material |
Plastic |
| Tape Type |
Embossed |
|
|
| ECAD MODELS |
 |
| |
|
