| XF2M-4015-1A COUNTRY OF ORIGIN |
XF2M-4015-1A PARAMETRIC INFO
|
XF2M-4015-1A PACKAGE INFO
|
XF2M-4015-1A MANUFACTURING INFO
|
XF2M-4015-1A PACKAGING INFO
|
XF2M-4015-1A EACD MODELS
|
|
| COUNTRY OF ORIGIN |
| China |
|
PARAMETRIC INFO
|
| Type |
FFC/FPC Connector |
| Contact Gender |
SKT |
| Number of Contacts |
40 |
| Termination Method |
Solder |
| Maximum Current Rating (A) |
0.5 |
| Maximum Voltage Rating |
50VDC|50VAC |
| Housing Material |
Liquid Crystal Polymer |
| Housing Color |
Natural |
| Contact Material |
Copper Alloy |
| Contact Plating |
Gold Over Nickel |
| Number of Rows |
1 |
| Maximum Contact Resistance (mOhm) |
50 |
| Insulation Resistance (MOhm) |
100 |
| Operating Temperature (°C) |
-30 to 85 |
| Minimum Operating Temperature (°C) |
-30 |
| Maximum Operating Temperature (°C) |
85 |
| Mating Cycle (Cycles) |
20 |
| Contact Type |
Dual Contact |
| Maximum Terminal Width (mm) |
0.15(Typ) |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
0.5 |
| Body Orientation |
Right Angle |
| Mounting |
Surface Mount |
| Product Length (mm) |
24.1 |
| Product Depth (mm) |
6.2 |
| Product Depth (Actuator Opened) (mm) |
5.2 |
| Product Height (mm) |
2.1 |
| Length Tolerance (mm) |
N/A |
| Depth Tolerance (mm) |
N/A |
| Height Tolerance (mm) |
N/A |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
N/A |
| Reflow Solder Time (Sec) |
N/A |
| Number of Reflow Cycle |
N/A |
| Standard |
N/A |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|

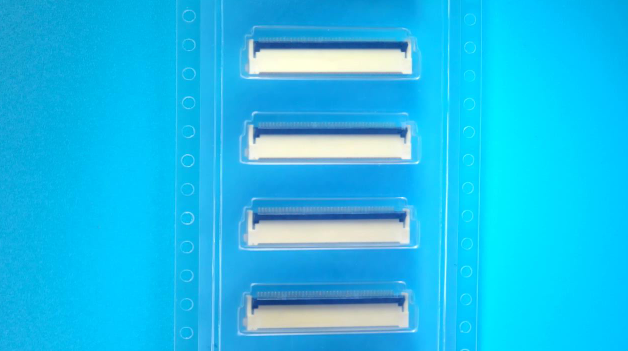

| Packaging |
Tape and Reel |
| Quantity Of Packaging |
1500 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
| |
