XHP-4 PARAMETRIC INFO
|
XHP-4 PACKAGE INFO
|
XHP-4 MANUFACTURING INFO
|
XHP-4 PACKAGING INFO
|
|
PARAMETRIC INFO
|
| Type |
Housing |
| Gender |
F |
| Number of Contacts |
4 |
| Termination Method |
Crimp |
| Maximum Current Rating (A) |
3 |
| Maximum Voltage Rating |
250VDC|250VAC |
| Housing Material |
Polyamide 6 |
| Housing Color |
White |
| Number of Rows |
1 |
| Wire Size (AWG) |
22-30 |
| Insulation Resistance (MOhm) |
1000 |
| Operating Temperature (°C) |
-25 to 85 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
| Keyed |
Yes |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
2.5 |
| Body Orientation |
Straight |
| Mounting |
Cable Mount |
| Product Length (mm) |
12.3 |
| Product Depth (mm) |
5.7 |
| Product Height (mm) |
7.75 |
| Length Tolerance (mm) |
N/A |
| Depth Tolerance (mm) |
N/A |
| Height Tolerance (mm) |
N/A |
| Product Weight (g) |
N/A |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
N/R |
| Under Plating Material |
N/R |
| Terminal Base Material |
N/R |
| Shelf Life Period |
N/R |
| Under Plating Porosity Free |
N/R |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|

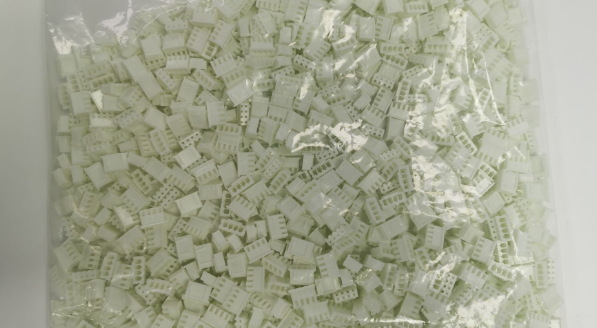

| Packaging |
Bag |
| Quantity Of Packaging |
1000 |
| Packaging Document |
Link to Datasheet |
|
|
