• 4mA TO 20mA TRANSMITTER
|
• SELECTABLE INPUT/OUTPUT RANGES:
0V to +5V, 0V to +10V Inputs
0mA to 20mA, 5mA to 25mA Outputs
Other Ranges
|
• 0.005% MAX NONLINEARITY, 14 BIT
|
• PRECISION +10V REFERENCE OUTPUT
|
• SINGLE-SUPPLY OPERATION
|
• WIDE SUPPLY RANGE: 13.5V to 40V
|
|
| CATALOG |
| XTR110KP COUNTRY OF ORIGIN |
XTR110KP PARAMETRIC INFO
|
XTR110KP PACKAGE INFO
|
XTR110KP MANUFACTURING INFO
|
XTR110KP PACKAGING INFO
|
XTR110KP ECAD MODELS
|
XTR110KP APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Mexico
|
Malaysia
|
|
PARAMETRIC INFO
|
| Sensor Type |
Current Transmitter |
| Input Type |
Analog |
| Output Type |
Analog |
| Typical Operating Supply Voltage (V) |
12|15|18|24 |
| Minimum Operating Supply Voltage (V) |
13.5 |
| Maximum Operating Supply Voltage (V) |
40 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
| Temperature Flag |
Opr |
|
|
PACKAGE INFO
|
| Supplier Package |
PDIP |
| Basic Package Type |
Through Hole |
| Pin Count |
16 |
| Lead Shape |
Through Hole |
| PCB |
16 |
| Tab |
N/R |
| Pin Pitch (mm) |
2.54 |
| Package Length (mm) |
19.69(Max) |
| Package Width (mm) |
6.6(Max) |
| Package Height (mm) |
5.08(Max) - 0.51(Min) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
19.69(Max) |
| Package Overall Width (mm) |
10.92(Max) |
| Package Overall Height (mm) |
5.08(Max) |
| Seated Plane Height (mm) |
5.08(Max) |
| Mounting |
Through Hole |
| Package Material |
Plastic |
| Package Description |
Plastic Dual In Line Package |
| Package Family Name |
DIP |
| Jedec |
MS-001BB |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum Reflow Temperature (°C) |
N/R |
| Reflow Solder Time (Sec) |
N/R |
| Number of Reflow Cycle |
N/R |
| Standard |
N/R |
| Maximum Wave Temperature (°C) |
N/A |
| Wave Solder Time (Sec) |
N/A |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/A |
|
|
PACKAGING INFO
|
| Packaging |
Tube |
| Quantity Of Packaging |
25 |
| Packaging Document |
Link to Datasheet |
|
|

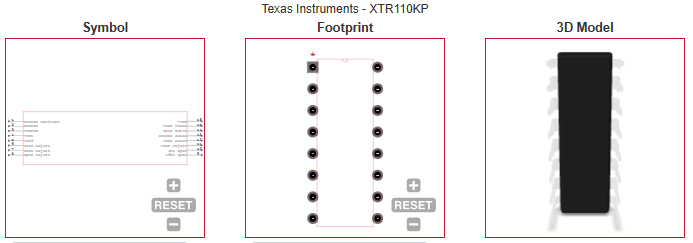

ECAD MODELS
|
|
|
APPLICATIONS
|
• INDUSTRIAL PROCESS CONTROL
|
• PRESSURE/TEMPERATURE TRANSMITTERS
|
• CURRENT-MODE BRIDGE EXCITATION
|
• GROUNDED TRANSDUCER CIRCUITS
|
• CURRENT SOURCE REFERENCE FOR DATA
ACQUISITION
|
| • PROGRAMMABLE CURRENT SOURCE FOR
TEST EQUIPMENT |
• POWER PLANT/ENERGY SYSTEM
MONITORING
|
|
