• EASY-TO-DESIGN INPUT/OUTPUT RANGES:
0mA–20mA, 4mA–20mA, 5mA–25mA AND VOLTAGE OUTPUTS
|
• NONLINEARITY: 0.002%
|
• LOW OFFSET DRIFT: 1μV/°C
|
• ACCURACY: 0.015%
|
• SINGLE-SUPPLY OPERATION
|
| • WIDE SUPPLY RANGE: 7V to 44V |
| • OUTPUT ERROR FLAG (EF) |
| • OUTPUT DISABLE (OD) |
| • ADJUSTABLE VOLTAGE REGULATOR:3V to 15V |
|
| CATALOG |
XTR111AIDGQT COUNTRY OF ORIGIN
|
XTR111AIDGQT PARAMETRIC INFO
|
XTR111AIDGQT PACKAGE INFO
|
XTR111AIDGQT MANUFACTURING INFO
|
XTR111AIDGQT PACKAGING INFO
|
XTR111AIDGQT ECAD MODELS
|
XTR111AIDGQT APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
| China |
| Thailand |
|
PARAMETRIC INFO
|
| Sensor Type |
Current Transmitter |
| Input Type |
Analog|Digital |
| Output Type |
Analog|Digital |
| Interface Type |
3-Wire |
| Typical Operating Supply Voltage (V) |
9|12|15|18|24 |
| Minimum Operating Supply Voltage (V) |
7 |
| Maximum Operating Supply Voltage (V) |
44 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Temperature Flag |
Opr |
|
|
PACKAGE INFO
|
| Supplier Package |
HVSSOP EP |
| Basic Package Type |
Lead-Frame SMT |
| Pin Count |
10 |
| Lead Shape |
Gull-wing |
| PCB |
10 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
3.1(Max) |
| Package Width (mm) |
3.1(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.1(Max) |
| Package Overall Width (mm) |
5.05(Max) |
| Package Overall Height (mm) |
1.1(Max) |
| Seated Plane Height (mm) |
1.1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Heat Sinked Very Thin Shrink Small Outline Package, Exposed Pad |
| Package Family Name |
SO |
| Jedec |
MO-187BA-T |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|

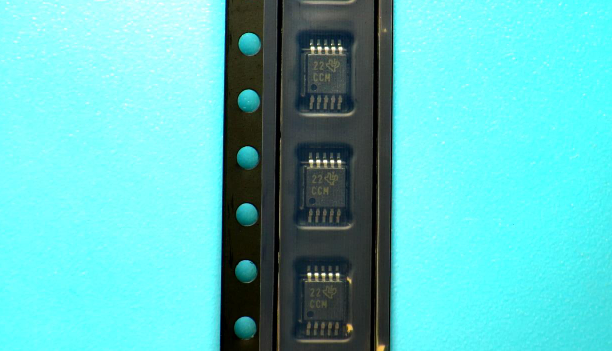

PACKAGING INFO
|
| Packaging Suffix |
T |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
250 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• UNIVERSAL VOLTAGE-CONTROLLED
CURRENT SOURCE
|
| • CURRENT OR VOLTAGE OUTPUT FOR 3-WIRE
SENSOR SYSTEMS |
• PLC OUTPUT PROGRAMMABLE DRIVER
|
• CURRENT-MODE SENSOR EXCITATION
|
|
| |
| |
