• EASY-TO-DESIGN INPUT/OUTPUT RANGES:0mA–20mA, 4mA–20mA, 5mA–25mA AND VOLTAGE OUTPUTS
|
• NONLINEARITY: 0.002%
|
• LOW OFFSET DRIFT: 1μV/°C
|
| • ACCURACY: 0.015%
|
| • SINGLE-SUPPLY OPERATION |
| • WIDE SUPPLY RANGE: 7V to 44V |
| • OUTPUT ERROR FLAG (EF) |
| • OUTPUT DISABLE (OD) |
| • ADJUSTABLE VOLTAGE REGULATOR:3V to 15V |
| |
| CATALOG |
| XTR111AIDRCR COUNTRY OF ORIGIN |
XTR111AIDRCR PARAMETRIC INFO
|
XTR111AIDRCR PACKAGE INFO
|
XTR111AIDRCR MANUFACTURING INFO
|
XTR111AIDRCR PACKAGING INFO
|
XTR111AIDRCR EACD MODELS
|
| XTR111AIDRCR APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| Malaysia |
| China |
| Thailand |
| Philippines |
|
PARAMETRIC INFO
|
| Sensor Type |
Current Transmitter |
| Input Type |
Analog|Digital |
| Output Type |
Analog|Digital |
| Interface Type |
3-Wire |
| Typical Operating Supply Voltage (V) |
9|12|15|18|24 |
| Minimum Operating Supply Voltage (V) |
7 |
| Maximum Operating Supply Voltage (V) |
44 |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
125 |
| Minimum Storage Temperature (°C) |
-65 |
| Maximum Storage Temperature (°C) |
150 |
| Temperature Flag |
Opr |
|
|
PACKAGE INFO
|
| Supplier Package |
VSON EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
10 |
| Lead Shape |
No Lead |
| PCB |
10 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.5 |
| Package Length (mm) |
3.1(Max) |
| Package Width (mm) |
3.1(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
3.1(Max) |
| Package Overall Width (mm) |
3.1(Max) |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Small Outline No Lead, Exposed Pad |
| Package Family Name |
SON |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
|
|

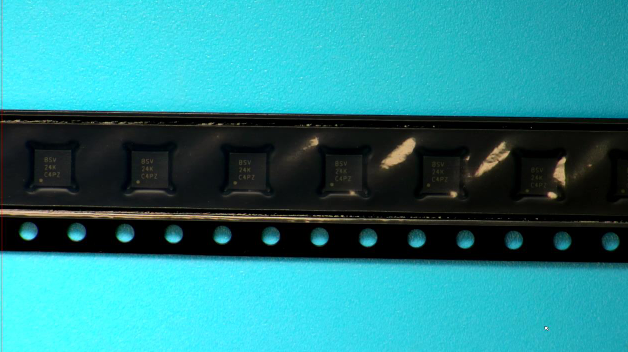

PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
| APPLICATIONS |
| • UNIVERSAL VOLTAGE-CONTROLLED CURRENT SOURCE |
| • CURRENT OR VOLTAGE OUTPUT FOR 3-WIRE SENSOR SYSTEMS |
| • PLC OUTPUT PROGRAMMABLE DRIVER |
| • CURRENT-MODE SENSOR EXCITATION |
| |
