• Selects Highest Priority Supply from Three Inputs
|
• Blocks Reverse and Cross Conduction Currents
|
• Wide Operating Voltage Range: 2.5V to 36V
|
• –42V Protection Against Reverse Battery
Connection
|
• Fast Switchover Minimizes Output Voltage Droop
|
• Low 28µA Operating Current
|
• <1µA Current Draw from Supplies Less than VOUT
|
• 1.5% Input Overvoltage/Undervoltage Protection
|
|
| CATALOG |
XTR300AIRGWR COUNTRY OF ORIGIN
|
XTR300AIRGWR PARAMETRIC INFO
|
XTR300AIRGWR PACKAGE INFO
|
XTR300AIRGWR MANUFACTURING INFO
|
XTR300AIRGWR PACKAGING INFO
|

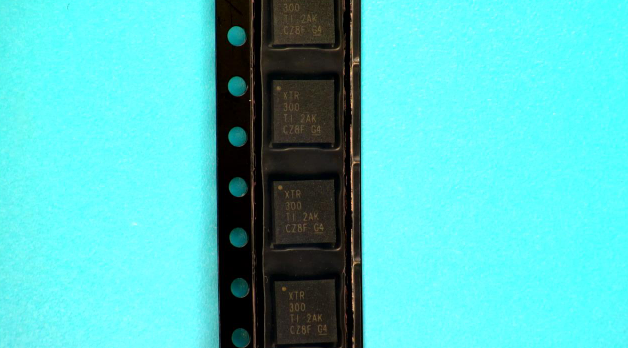

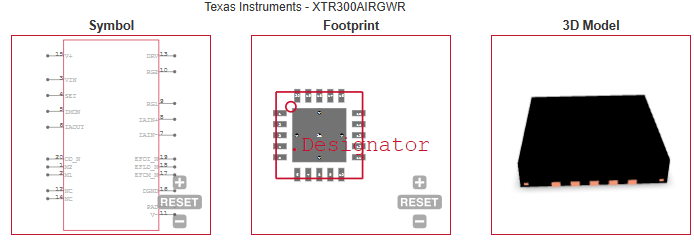

XTR300AIRGWR ECAD MODELS
|
XTR300AIRGWR APPLICATIONS
|
|
COUNTRY OF ORIGIN
|
Malaysia
|
|
PARAMETRIC INFO
|
| Category |
Output Driver |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
125 |
|
|
PACKAGE INFO
|
| Supplier Package |
VQFN EP |
| Basic Package Type |
Non-Lead-Frame SMT |
| Pin Count |
20 |
| Lead Shape |
No Lead |
| PCB |
20 |
| Tab |
N/R |
| Pin Pitch (mm) |
0.65 |
| Package Length (mm) |
5.15(Max) |
| Package Width (mm) |
5.15(Max) |
| Package Height (mm) |
0.95(Max) |
| Package Diameter (mm) |
N/R |
| Package Overall Length (mm) |
5.15(Max) |
| Package Overall Width (mm) |
5.15(Max) |
| Package Overall Height (mm) |
1(Max) |
| Seated Plane Height (mm) |
1(Max) |
| Mounting |
Surface Mount |
| Package Weight (g) |
N/A |
| Package Material |
Plastic |
| Package Description |
Very Thin Quad Flat No Lead Package, Exposed Pad |
| Package Family Name |
QFN |
| Package Outline |
Link to Datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
2 |
| Maximum Reflow Temperature (°C) |
260 |
| Reflow Solder Time (Sec) |
30 |
| Number of Reflow Cycle |
3 |
| Standard |
J-STD-020D |
| Reflow Temp. Source |
Link to Datasheet |
| Maximum Wave Temperature (°C) |
N/R |
| Wave Solder Time (Sec) |
N/R |
| Lead Finish(Plating) |
Au |
| Under Plating Material |
Pd over Ni |
| Terminal Base Material |
Cu Alloy |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|
| Packaging Suffix |
R |
| Packaging |
Tape and Reel |
| Quantity Of Packaging |
3000 |
| Packaging Document |
Link to Datasheet |
|
|
ECAD MODELS
|
|
|
APPLICATIONS
|
• PLC OUTPUT PROGRAMMABLE DRIVER
|
| • INDUSTRIAL CROSS-CONNECTORS |
• INDUSTRIAL HIGH-VOLTAGE I/O
|
• 3-WIRE-SENSOR CURRENT OR VOLTAGE OUTPUT
|
| • ±10V 2- AND 4-WIRE VOLTAGE OUTPUT U.S. Patent Nos. 7,427,898, 7,425,848, and 7,449,873 |
| |
