• Overvoltage transient suppression
|
• Stable VZ vs. fault current
|
• Time delayed, overvoltage trip
|
• Time delayed, reverse bias trip
|
• Multi-Watt power handling capability
|
• Integrated device construction
|
• RoHS compliant
|
• Halogen free(refers to: Br≥900ppm, Cl≥900ppm, Br+Cl≥1500ppm)
|
|
| CATALOG |
ZEN056V130A24LS COUNTRY OF ORIGIN
|
ZEN056V130A24LS LIFECYCLE
|
ZEN056V130A24LS PARAMETRIC INFO
|
ZEN056V130A24LS PACKAGE INFO
|
ZEN056V130A24LS PACKAGING INFO
|
ZEN056V130A24LS ECAD MODELS
|
ZEN056V130A24LS APPLICAITONS
|
|
COUNTRY OF ORIGIN
|
United States of America
|
|
LIFECYCLE
|
Obsolete
Dec 31,2019
|
|
PARAMETRIC INFO
|
| Type |
Polymer |
| Nominal Zener Voltage (V) |
5.6 |
| Capacitance Value (pF) |
4200(Typ) |
| Minimum Operating Temperature (°C) |
-40 |
| Maximum Operating Temperature (°C) |
85 |
| Minimum Storage Temperature (°C) |
-40 |
| Maximum Storage Temperature (°C) |
85 |
|
|
PACKAGE INFO
|
| Supplier Package |
N/A |
| Pin Count |
3 |
| PCB |
3 |
| Tab |
N/R |
| Package Length (mm) |
2.5 |
| Package Width (mm) |
3.2 |
| Package Height (mm) |
N/A |
| Package Diameter (mm) |
N/R |
| Mounting |
Surface Mount |
| Package Outline |
Link to Datasheet |
|
|
PACKAGING INFO
|

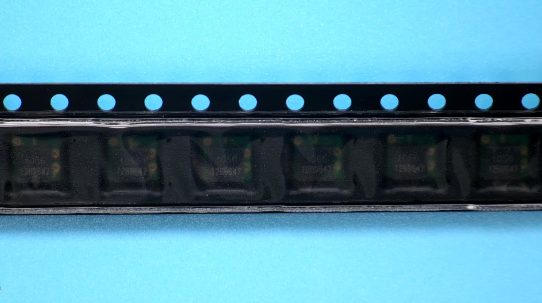

| Packaging |
Tape and Reel |
| Packaging Document |
Link to Datasheet |
|
|

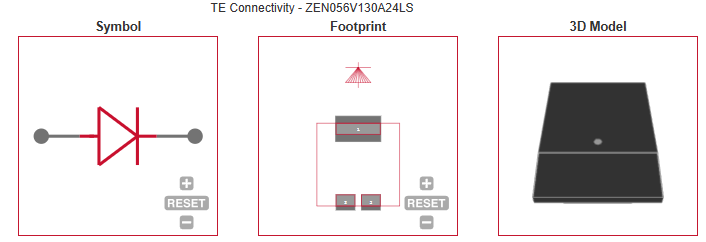

| ECAD MODELS |
|
|
| APPLICATIONS |
| • DC power port protection in portable electronics |
| • DC power port protection for systems using barrel jacks for power input |
| • Internal overvoltage and transient suppression |
| • DC output voltage regulation |
| • Tablet PCs and portable electronics |
| |
