| ZHR-2 COUNTRY OF ORIGIN |
ZHR-2 PARAMETRIC INFO
|
ZHR-2 PACKAGE INFO
|
ZHR-2 MANUFACTURING INFO
|
ZHR-2 PACKAGING INFO
|
|
| COUNTRY OF ORIGIN |
| Korea (Republic of) |
|
PARAMETRIC INFO
|
| type |
Housing |
| Gender |
RCP |
| Number of Contacts |
2 |
| Termination Method |
Crimp |
| Maximum Current Rating (A) |
0.7 |
| Maximum Voltage Rating |
50VDC|50VAC |
| Housing Material |
Polyamide 6/6 |
| Housing Color |
White |
| Number of Rows |
1 |
| Wire Size (AWG) |
28-30 |
| Insulation Resistance (MOhm) |
500 |
| Operating Temperature (°C) |
-25 to 85 |
| Minimum Operating Temperature (°C) |
-25 |
| Maximum Operating Temperature (°C) |
85 |
| Keyed |
yes |
|
|
PACKAGE INFO
|
| Terminal Pitch (mm) |
1.5 |
| Body Orientation |
Straight |
| Install |
Cable Mount |
| Product Length (mm) |
4.5 |
| Product Depth (mm) |
3.4 |
| Product Height (mm) |
4.8 |
| Length Tolerance (mm) |
not applicable |
| Depth Tolerance (mm) |
not applicable |
| Height Tolerance (mm) |
not applicable |
| Product Weight (g) |
not applicable |
|
|
MANUFACTURING INFO
|
| MSL |
N/R |
| Maximum reflow temperature (°C) |
N/R |
| Reflow soldering time (seconds) |
N/R |
| Number of reflow cycles |
N/R |
| standard |
N/R |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
N/R |
| Plating materials |
N/R |
| Terminal Base Material |
N/R |
| Number of Wave Cycles |
N/R |
|
|
PACKAGING INFO
|

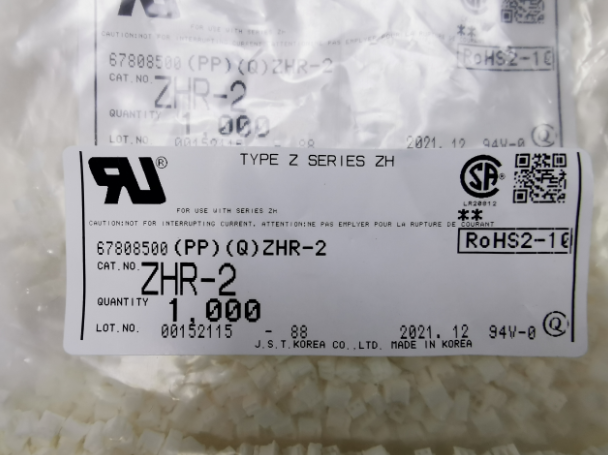

| Package |
Bag |
| Packing quantity |
1000 |
| packaging type file |
Link to datasheet |
|
| |
