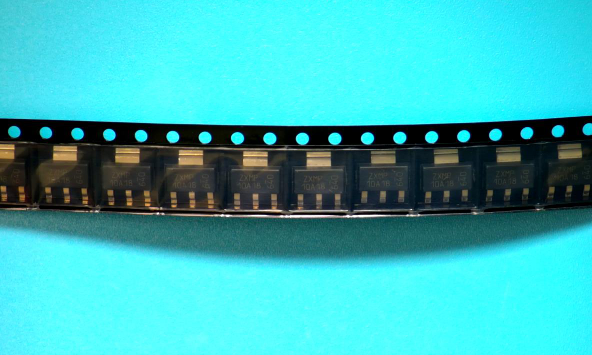

• Low On-Resistance
|
• Fast Switching Speed
|
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
|
| • Halogen and Antimony Free. “Green” Device (Note 3)
|
| • For automotive applications requiring specific change control
(i.e.: parts qualified to AEC-Q100/101/200, PPAP capable, and
manufactured in IATF 16949 certified facilities), please refer
to the related automotive grade (Q-suffix) part. A listing can
be found at
https://www.diodes.com/products/automotive/automotiveproducts/. |
| • This part is qualified to JEDEC standards (as references in
AEC-Q) for High Reliability.
https://www.diodes.com/quality/product-definitions/ |
|
| CATALOG |
| ZXMP10A18GTA COUNTRY OF ORIGIN |
ZXMP10A18GTA PARAMETRIC INFO
|
ZXMP10A18GTA PACKAGE INFO
|
ZXMP10A18GTA MANUFACTURING INFO
|
| ZXMP10A18GTA APPLICATIONS |
|
| COUNTRY OF ORIGIN |
| China |
| Germany |
|
PARAMETRIC INFO
|
| Channel Type |
P |
| Channel Mode |
Enhancement |
| Configuration |
Single Dual Drain |
| Maximum Drain Source Voltage (V) |
100 |
| Maximum Continuous Drain Current (A) |
2.6 |
| Maximum Absolute Continuous Drain Current (A) |
2.6 |
| Maximum Gate Source Voltage (V) |
±20 |
| Maximum Drain Source Resistance (mOhm) |
150@10V |
| Typical Gate Charge @ Vgs (nC) |
26.9@10V |
| Typical Gate Charge @ 10V (nC) |
26.9 |
| Maximum Power Dissipation (mW) |
3900 |
| Category |
Power MOSFET |
| Typical Input Capacitance @ Vds (pF) |
1055@50V |
| Typical Turn-On Delay Time (ns) |
4.6 |
| Typical Turn-Off Delay Time (ns) |
33.9 |
| Typical Fall Time (ns) |
17.9 |
| Typical Rise Time (ns) |
6.8 |
| Number of Elements per Chip |
1 |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
|
|
PACKAGE INFO
|
| Supplier packaging |
SOT-223 |
| Basic package type |
Lead-Frame SMT |
| Number of pins |
4 |
| Pin shape |
Gull-wing |
| PCB |
3 |
| ears |
ears |
| Pin spacing (mm) |
2.3 |
| Package length (mm) |
6.5 |
| Package width (mm) |
3.5 |
| Package height (mm) |
1.6 |
| Package diameter (mm) |
N/R |
| Package Overall Length (mm) |
6.5 |
| Package Overall Width (mm) |
7 |
| Package Overall Height (mm) |
1.65 |
| Mounting surface height (mm) |
1.65 |
| Install |
Surface Mount |
| Packaging materials |
Plastic |
| package instruction |
Small Outline Transistor |
| Package series name |
SOT |
| JEDEC |
TO-261AA |
| Package outline |
Link to datasheet |
|
|
MANUFACTURING INFO
|
| MSL |
1 |
| Maximum reflow temperature (°C) |
260 |
| Reflow soldering time (seconds) |
30 |
| Number of reflow cycles |
3 |
| standard |
J-STD-020D |
| Reflow temperature source |
Link to datasheet |
| Maximum wave soldering temperature (°C) |
N/R |
| Wave soldering time (seconds) |
N/R |
| Lead Finish(Plating) |
Matte Sn annealed |
| Plating materials |
Ag |
| Terminal Base Material |
Cu Alloy |
|
|
APPLICATIONS
|
• Motor controls
|
• DC-DC converters
|
• Power management functions
|
| • Relay and solenoid driving |
| |
