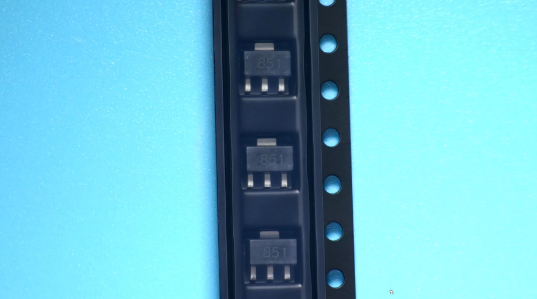

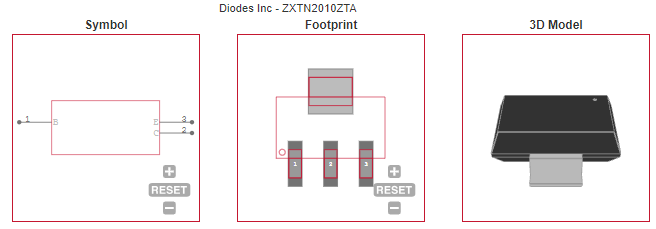

| Type |
NPN |
| Configuration |
Single Dual Collector |
| Maximum Collector-Emitter Voltage (V) |
60 |
| Maximum Collector Base Voltage (V) |
150 |
| Maximum Emitter Base Voltage (V) |
7 |
| Maximum DC Collector Current (A) |
5 |
| Maximum Power Dissipation (mW) |
2100 |
| Maximum Turn-Off Time (ns) |
760(Typ) |
| Maximum Junction Ambient Thermal Resistance |
83°C/W |
| Maximum Collector Cut-Off Current (nA) |
50 |
| Maximum Base Emitter Saturation Voltage (V) |
1.1@300mA@6A |
| Category |
Bipolar Power |
| Minimum DC Current Gain |
100@10mA@1V|100@2A@1V|55@5A@1V|20@10A@1V |
| Number of Elements per Chip |
1 |
| Maximum Turn-On Time (ns) |
42(Typ) |
| Maximum Transition Frequency (MHz) |
130(Typ) |
| Minimum Storage Temperature (°C) |
-55 |
| Maximum Storage Temperature (°C) |
150 |
| Minimum Operating Temperature (°C) |
-55 |
| Maximum Operating Temperature (°C) |
150 |
| Supplier Temperature Grade |
Automotive |
