ZXTP2009ZQTA Diodes Incorporated TRANS PNP 40V 5.5A SOT89-3


• BVCEO > -40V
• IC = -5.5A Continuous Collector Current
• ICM = -15A Peak Pulse Current
• Very Low Saturation Voltage VCE(SAT) < -60mV max @ -1A
• RSAT = 29mΩ @ -5.5A for Low Equivalent On-Resistance


CATALOG
ZXTP2009ZQTA COUNTRY OF ORIGIN
ZXTP2009ZQTA PARAMETRIC INFO
ZXTP2009ZQTA PACKAGE INFO
ZXTP2009ZQTA PACKAGING INFO
ZXTP2009ZQTA APPLICATIONS

COUNTRY OF ORIGIN
China

PARAMETRIC INFO
Type PNP
Configuration Single Dual Collector
Maximum Collector-Emitter Voltage (V) 40
Maximum Collector Base Voltage (V) 50
Maximum Emitter Base Voltage (V) 7
Maximum DC Collector Current (A) 5.5
Maximum Power Dissipation (mW) 3000
Typical Output Capacitance (pF) 53
Maximum Delay Time (ns) 55(Typ)
Maximum Rise Time (ns) 107(Typ)
Maximum Storage Time (ns) 325(Typ)
Maximum Base Emitter Saturation Voltage (V) 0.9@40mA@2A|1.075@550mA@5.5A
Category Bipolar Power
Number of Elements per Chip 1
Maximum Transition Frequency (MHz) 152(Typ)
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Supplier Temperature Grade Automotive


PACKAGE INFO
Supplier Package SOT-89
Pin Count 4
PCB 3
Tab Tab
Package Length (mm) 4.5
Package Width (mm) 2.5
Package Height (mm) 1.5
Package Diameter (mm) N/R
Mounting Surface Mount
Package Weight (g) 0.052
Package Family Name SOT
Package Outline Link to Datasheet


PACKAGING INFO

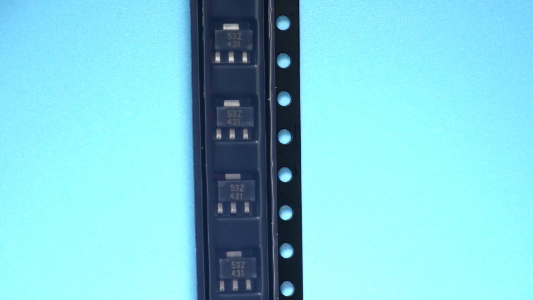

Packaging Tape and Reel
Quantity Of Packaging 1000
Packaging Document Link to Datasheet


APPLICATIONS
• DC-DC converters
• MOSFET gate drivers
• Charging circuits
• Power switches
• Motor controls
