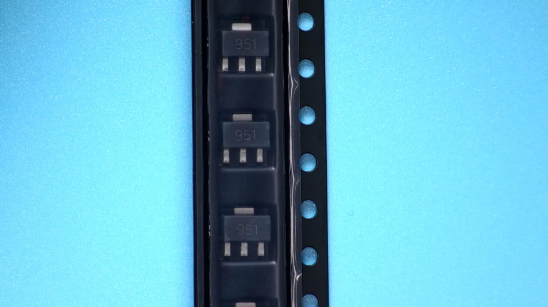

ZXTP2012ZTA Diodes Incorporated TRANS PNP 60V 4.3A SOT89

label:
2023/12/7 359


• BVCEO > -60V
• IC = -4.3A High Continuous Current
• RSAT = 32mΩ for a Low Equivalent On-Resistance  Low Saturation Voltage VCE(sat) < -65mV @ IC = -1
• hFE Specified Up to -10A for High Current Gain Hold Up
• Complementary NPN Type: DIODES™ ZXTN2010Z 
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• An Automotive-Compliant Part is Available Under Separate Datasheet (ZXTP2012ZQ)
CATALOG
ZXTP2012ZTA COUNTRY OF ORIGIN
ZXTP2012ZTA PARAMETRIC INFO
ZXTP2012ZTA PACKAGE INFO
ZXTP2012ZTA MANUFACTURING INFO
ZXTP2012ZTA PACKAGING INFO
ZXTP2012ZTA APPLICATIONS


COUNTRY OF ORIGIN
China


PARAMETRIC INFO
Type PNP
Configuration Single Dual Collector
Maximum Collector-Emitter Voltage (V) 60
Maximum Collector Base Voltage (V) 100
Maximum Emitter Base Voltage (V) 7
Maximum DC Collector Current (A) 4.3
Material Si
Maximum Power Dissipation (mW) 2100
Maximum Junction Ambient Thermal Resistance 83°C/W
Maximum Junction Case Thermal Resistance 21°C/W
Maximum Turn-Off Time (ns) 370(Typ)
Maximum Collector Cut-Off Current (nA) 20
Maximum Collector-Emitter Saturation Voltage (V) 0.02@10mA@0.1A|0.065@100mA@1A|0.11@200mA@2A|0.215@500mA@5A
Maximum Base Emitter Saturation Voltage (V) 1.05@500mA@5A
Category Bipolar Power
Minimum DC Current Gain 100@10mA@1V|100@2A@1V|45@5A@1V|10@10A@1V
Number of Elements per Chip 1
Maximum Turn-On Time (ns) 39(Typ)
Maximum Transition Frequency (MHz) 120(Typ)
Minimum Storage Temperature (°C) -55
Maximum Storage Temperature (°C) 150
Minimum Operating Temperature (°C) -55
Maximum Operating Temperature (°C) 150
Supplier Temperature Grade Commercial

PACKAGE INFO
Supplier Package SOT-89
Basic Package Type Lead-Frame SMT
Pin Count 4
Lead Shape Flat
PCB 3
Tab Tab
Pin Pitch (mm) 1.5
Package Length (mm) 4.6(Max)
Package Width (mm) 2.6(Max)
Package Height (mm) 1.6(Max)
Package Diameter (mm) N/R
Package Overall Length (mm) 4.6(Max)
Package Overall Width (mm) 4.25(Max)
Package Overall Height (mm) 1.6(Max)
Seated Plane Height (mm) 1.6(Max)
Mounting Surface Mount
Package Material Plastic
Package Description Small Outline Transistor
Package Family Name SOT
Jedec TO-243AA
Package Outline Link to Datasheet

MANUFACTURING INFO
MSL 1
Maximum Reflow Temperature (°C) 260
Reflow Solder Time (Sec) 30
Number of Reflow Cycle 3
Standard J-STD-020D
Reflow Temp. Source Link to Datasheet
Maximum Wave Temperature (°C) N/R
Wave Solder Time (Sec) N/R
Lead Finish(Plating) Matte Sn annealed
Under Plating Material N/A
Terminal Base Material Cu Alloy
Number of Wave Cycles N/R

PACKAGING INFO
Packaging Suffix TA
Packaging Tape and Reel
Quantity Of Packaging 1000

APPLICATIONS
• Emergency Lighting Circuits
• Motor Driving (Including DC Fans)  
• Backlight Inverters  
• Power Switches  
• Gate Driving MOSFETs and IGBTs
